You can see all the manufacturing options for padel.

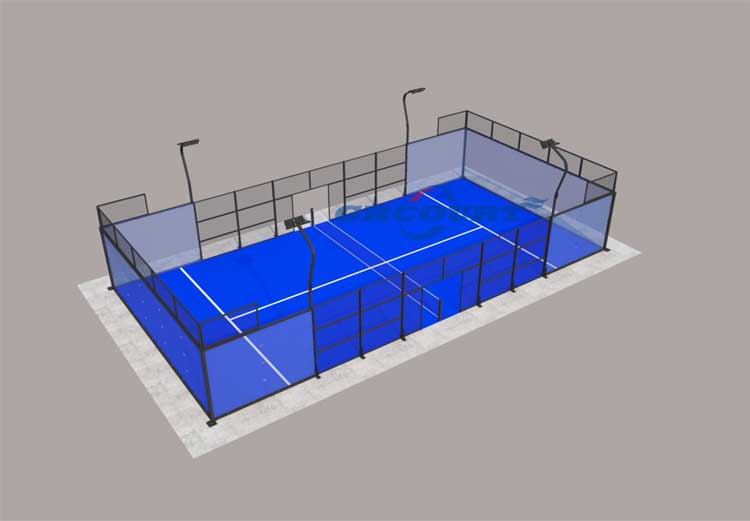

Panoramic Model
Structure
Corner Post: 100mm x 100mm x 3mm
Column: 100 x 50mm x 3mm
Upper Beam: 100mm*50mm*3mm
Lower Beam: 100 mm*50mm*3mm
Frame: 50mm x 30mm x 2mm
Mesh diameter: 4mm
Tempered Glass: 12 mm
Led lighting: 200w IP66
Artificial Grass
Color：Customization
Material: PE
Pile height: 12mm
Stitch rate: 25/10 cm
Gauge：3/16 inch
Density：63000s/㎡
Dtex：9000D
Backing：PU
Color customization is available.

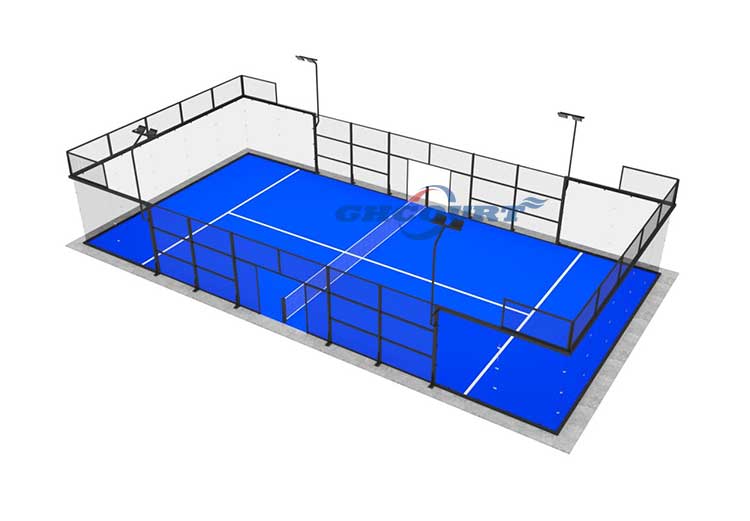

Super Panoramic Model
Structure
Column: 100 x 50mm x 3mm
Upper Beam: 100mm*100mm*3mm
Lower Beam: 100 mm*50mm*3mm
Frame: 50mm x 30mm x 2mm
Mesh diameter:4mm
Tempered Glass: 12 mm
Led lighting 200w IP66
Artificial Grass
Color：Customization
Material: PE
Pile height: 12mm
Stitch rate: 30/10 cm
Gauge：3/16 inch
Density：63000s/㎡
Dtex：9000D
Backing：PU
Color customization is available.
WPT Model
Structure
Column: 100mm x 50mm x 4mm
Upper Beam: 160mm*40mm*3.5mm
Lower Beam: 140 mm*40mm*2.5mm
Frame: 50 x 30mm x 5mm
Mesh Diameter: 4mm
Tempered Glass: 12 mm
Led lighting: 400w IP66
Artificial Grass
Material: PE
Height: 12mm
Stitch rate: 30/10 cm
Gauge：3/16 inch
Density：46200s/㎡
Dtex：13500D
Backing：PU
Color customization is available.
service related FAQ’s
Yes, our Padel Courts are designed and manufactured in strict accordance with the standards of the International Padel Federation (FIP), ensuring they meet the needs of professional competitions and training.
You can reach our after-sales team via phone, email, or online chat. We aim to respond within 24 hours and provide solutions promptly.
Our Padel Courts are designed for low maintenance. Regular cleaning of the artificial turf and structural inspections are usually sufficient.
Absolutely! We offer fully customizable services, including size, color, and branding, to meet your unique requirements.
Yes. We provide padel court installation services, or we can arrange engineers to provide installation guidance. You will need to cover the corresponding travel expenses.
